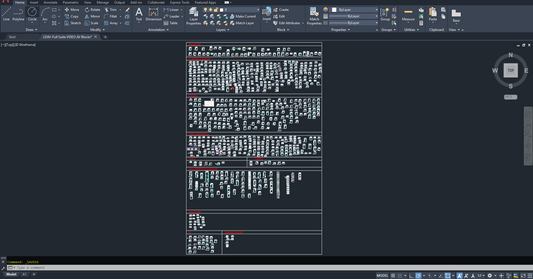

THE QUINTESSENTIAL DESIGN ASSET VAULT FOR AUDIO VISUAL SYSTEM CAD BLOCKS

As full-fledged AV design engineers that have been provisioning AV drawings & design services for the last decade, we understand that block creation is the most time-consuming component in building AV system drawings. We experienced this problem ourselves countless times over the years during heavy project & production deadlines. Initially, we built our own library for internal use only, with the intention of increasing drawing production efficiency for clients. We continued updating our internal library consistently with new product blocks over the years. What started as a small library has eventually grown to become a full-fledged suite that contains most industry-standard manufacturer product blocks that are used regularly in commercial AV project designs & installations. And now, we wish to share our entire AV suite libraries with you to offer increased efficiency, optimization and professional accuracy to AV professionals to help them do their jobs better and more productively - just like these libraries did for our own team and firm.

Production deadlines do not wait for manual drafting overhead. The LDCL Asset Vault provides enterprise-tier, standards-compliant CAD block libraries built specifically for professional AV integrators, consultants, drafters and designers. For over 10 years, our core engineering team has designed and delivered complex AV infrastructure documentation globally across APAC, the UK, Europe, and Canada. This repository productizes that decade of field-verified data into plug-and-play digital components.

THE STRUCTURAL CODES OF OUR ASSETS:

• 100% Standards Compliant: Structured natively to align with industry-standard AV equipment manufacturer product specifications and international architectural CAD layering conventions.
• Zero Friction Architecture: All assets are delivered as clean, lightweight vector CAD blocks with clean layer definitions, uniform line-weights, and easy editability. No messy lines, no unreferenced blocks.
• Frictionless Delivery: Complete your secure checkout via global credit card or native local FPX. The server automatically transmits a secure, time-sensitive download link to your inbox the exact moment your payment clears.

Stop wasting technical billable hours drawing standard hardware frames from scratch. Buy your capacity back.
