Full Suite: Video Equipment Schematic Block Library

File Format: .dwg (AutoCAD Native Vector)
Compatibility: AutoCAD 2010 and newer

Eliminate the time-drain of manually creating equipment blocks for individual displays, matrix switchers, and signal converters. This specialized engineering block suite provides a comprehensive, production-ready library of Audio Visual Video product assets precisely mapped to global manufacturer specifications & standards.

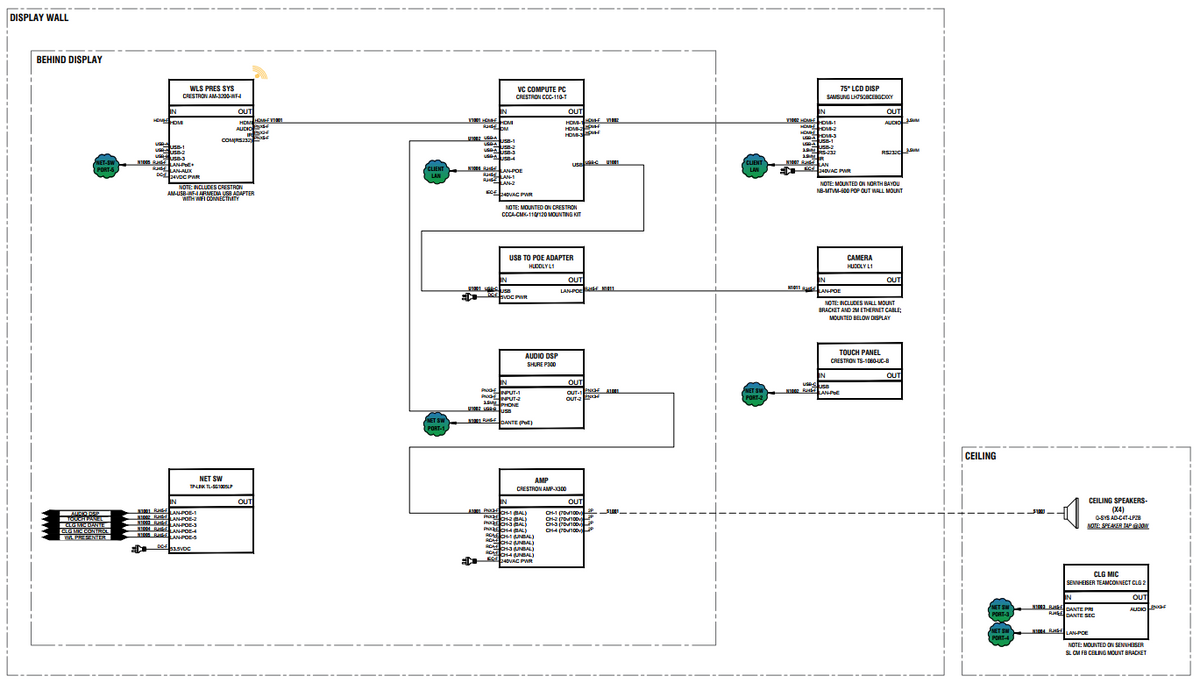

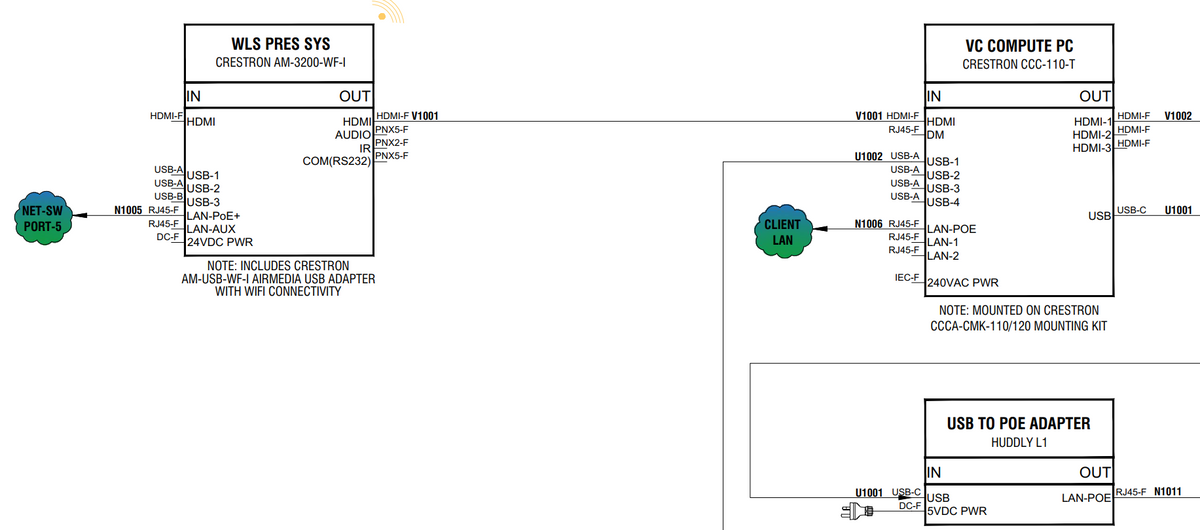

Every block in this suite is carefully organized by technical attributes of the real-world  manufacturer devices and their specific input/output connector configurations to ensure immediate integration into your schematic line diagram flows.

List of Manufacturer Product Brands Included in this Library:
Sony, Epson, NEC, Screen Technics, Panasonic, LG, BenQ, Samsung, ViewSonic, Lenovo, Marshall, Grandview, Microsoft, Philips, Sharp, HP, Logitech, Crestron, Barco, Extron, Icron, ATEN, Kramer, Bluestream, Magewell, BlackMagic, Brightsign, Lightware, Aver, Cisco, Lumens, Yealink, NEAT, Polycom, Altronics, Atlona and many more.

What Is Inside the Pack:

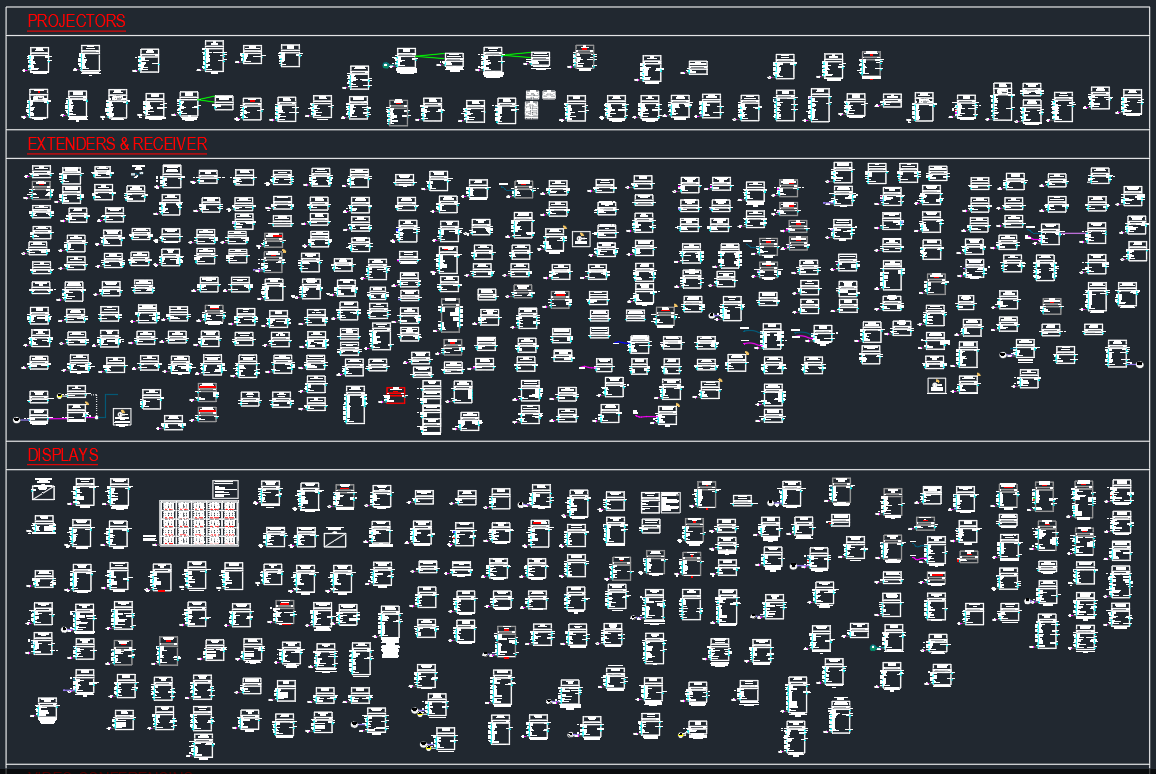

  • LCD Display & Projector Blocks: Commercial flat panel displays (various sizes & models from 43" to 98"), LED video wall arrays, projectors & projection screens

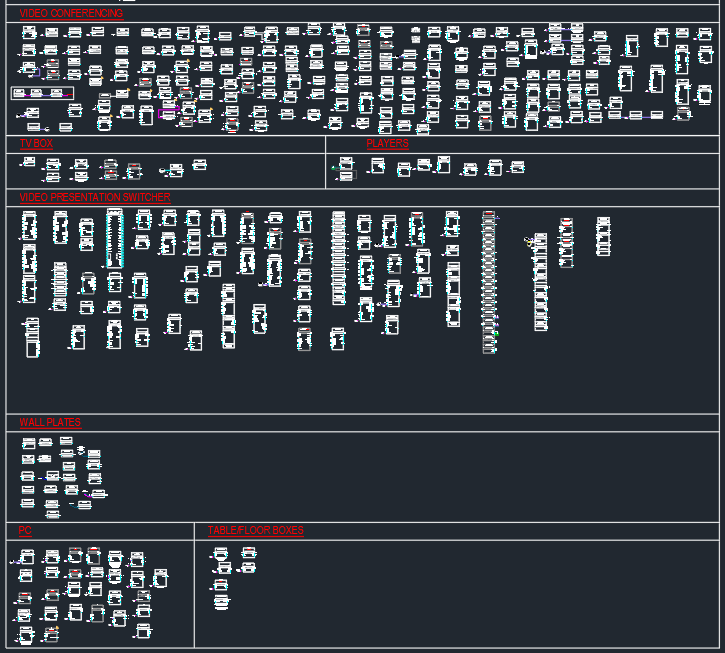

  • Video Routing Processors & Switching Devices: Master blocks for matrix switchers, HDBaseT/AVoIP encoders and decoders, Transmitter and receiver extender units, distribution amplifiers, and presentation switchers showing clear terminal pin-outs.
  • Cameras & Videoconferencing devices: Specialized blocks for PTZ collaboration cameras, document cameras, and native streaming capture hardware layouts.
  • PC's, Media Players & Streamers
Technical Notes & Considerations:

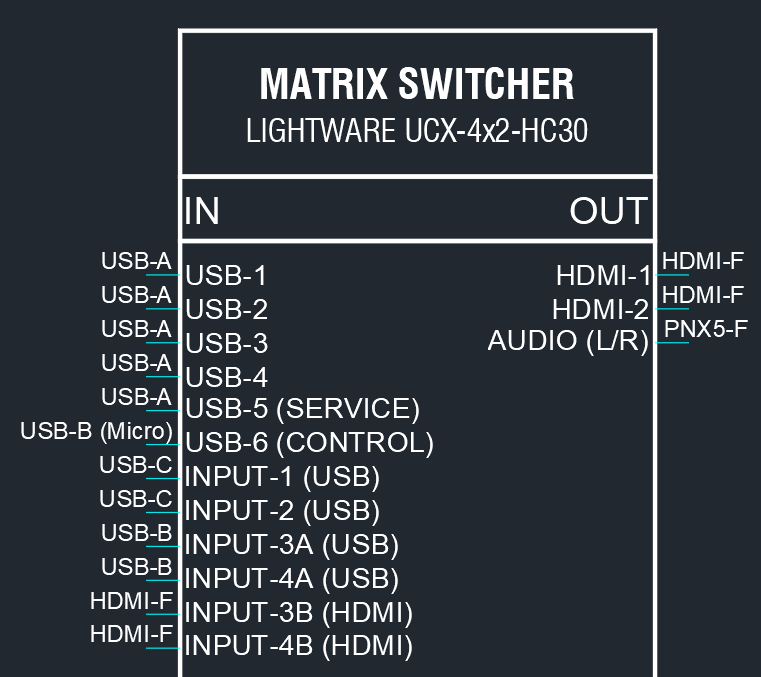

  • Every block in this library includes the product model/series number, connector name & connector type that is based exactly on the real-world manufacturer device configuration
  • All connectors are spaced 5 SNAP points apart
  • Every block is built around standard 'By Layer' lineweights, color and standard Mtext. Every block is fully editable. Adjust connector arrangements, SNAP point distances, product descriptions and color layers on each block as you wish for customization to suit your internal templates and standards
  • Please READ the 'HOW-TO' Manual Guide supplied in the Digital Download ZIP file package for this product to use this library accurately and maximize your project workflow efficiency!
This Digital Download purchase includes:
1. Full Suite AV Video Blocks (.DWG format) [ZIP file]
2. A detailed manual guide on how to use this library suite (Word/PDF)

Immediate Digital Delivery:
This is a 100% digital asset. Upon successful checkout validation, a secure .zip file containing the complete master library will be instantly dispatched to your corporate email address. Each license grants lifetime access and unlimited local machine workstation installations within your firm.
